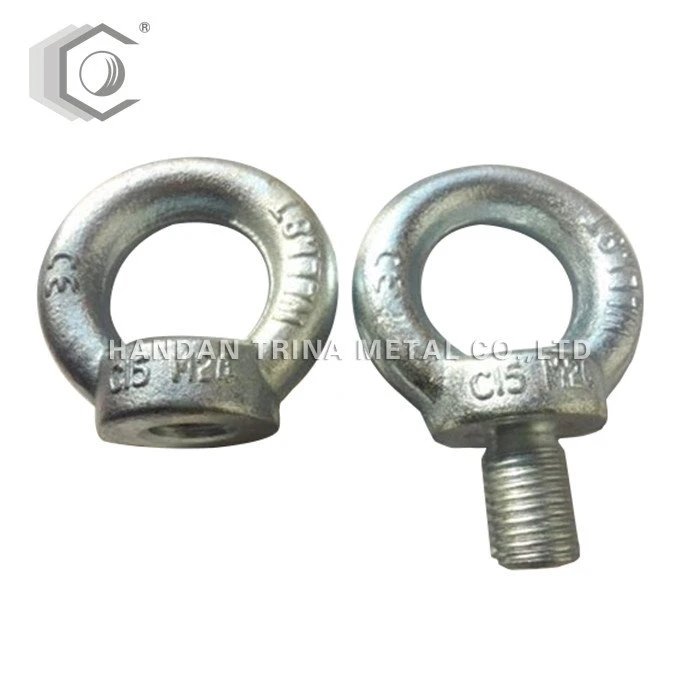

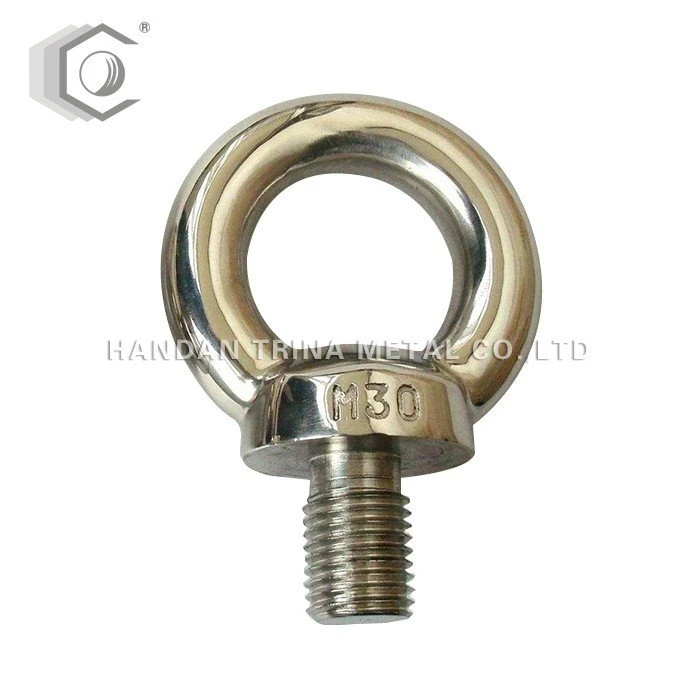

Grootte:M8-M100
Cijfer:4.8
Oppervlakte:ZP
Materiaal:Staal
Gebruik:Tillen
Technologie:smeden
Betalingstermijn:T/T ,L/C
Toepassing:Hijsen en aansluiten, Draadtouw passen, Ketting fit, Marine hardware fit
Kwaliteitscontrole: 100% kwaliteit geïnsepecteerd
D | M8 M8 | M10 M10 | M12 M12 | M16 M16 | M20 M20 | M24 M24 | M30 M30 | M36 M36 | M42 M42 | M48 M48 | M56 M56 | M64 M64 | M72×6 | M80×6 | M100×6 |
d2 | 20.0 | 25.0 | 30.0 | 35.0 | 40.0 | 50.0 | 65.0 | 75.0 | 85.0 | 100.0 | 110.0 | 120.0 | 150.0 | 170.0 | 190.0 |
19.5 | 24.5 | 29.5 | 34.5 | 39.5 | 49.4 | 64.3 | 74.3 | 84.3 | 99.2 | 108.9 | 118.9 | 148.8 | 168.5 | 188.5 | |
20.9 | 25.9 | 30.9 | 36.1 | 41.1 | 51.2 | 66.3 | 76.5 | 86.5 | 101.7 | 112.1 | 122.1 | 152.4 | 173.0 | 193.0 | |
d3 | 36.0 | 45.0 | 54.0 | 63.0 | 72.0 | 90.0 | 108.0 | 126.0 | 144.0 | 166.0 | 184.0 | 206.0 | 260.0 | 296.0 | 330.0 |
35.5 | 44.5 | 53.5 | 62.5 | 2.68 | 71.5 | 107.3 | 125.2 | 143.2 | 164.9 | 182.8 | 204.8 | 258.5 | 294.3 | 328.3 | |
37.1 | 46.1 | 55.1 | 64.1 | 73.1 | 3.12 | 109.5 | 127.7 | 145.7 | 168.1 | 186.4 | 208.4 | 263.0 | 299.3 | 333.3 | |
d4. | 20.0 | 25.0 | 30.0 | 35.0 | 40.0 | 50.0 | 60.0 | 70.0 | 80.0 | 90.0 | 100.0 | 110.0 | 140.0 | 160.0 | 180.0 |
19.1 | 24.1 | 29.1 | 33.9 | 38.9 | 48.8 | 58.7 | 68.5 | 78.5 | 88.3 | 98.1 | 107.9 | 137.6 | 157.3 | 177.0 | |
20.5 | 25.5 | 30.5 | 35.5 | 40.5 | 50.6 | 60.7 | 70.7 | 80.7 | 90.8 | 100.9 | 111.1 | 141.2 | 161.3 | 181.5 | |
E | 6 | 8 | 10 | 12 | 14 | 18 | 22 | 26 | 30 | 35 | 38 | 42 | 50 | 55 | 60 |
5.5 | 7.5 | 9.5 | 11.5 | 13.5 | 17.5 | 21.4 | 25.3 | 29.3 | 34.2 | 37.1 | 41.1 | 48.9 | 53.8 | 58.8 | |
6.9 | 8.9 | 10.9 | 12.9 | 14.9 | 19.1 | 23.2 | 27.3 | 31.3 | 36.7 | 39.9 | 43.9 | 52.1 | 57.4 | 62.4 | |
F | 2.5 | 3 | 3.5 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 12 | 12 | 12 |
